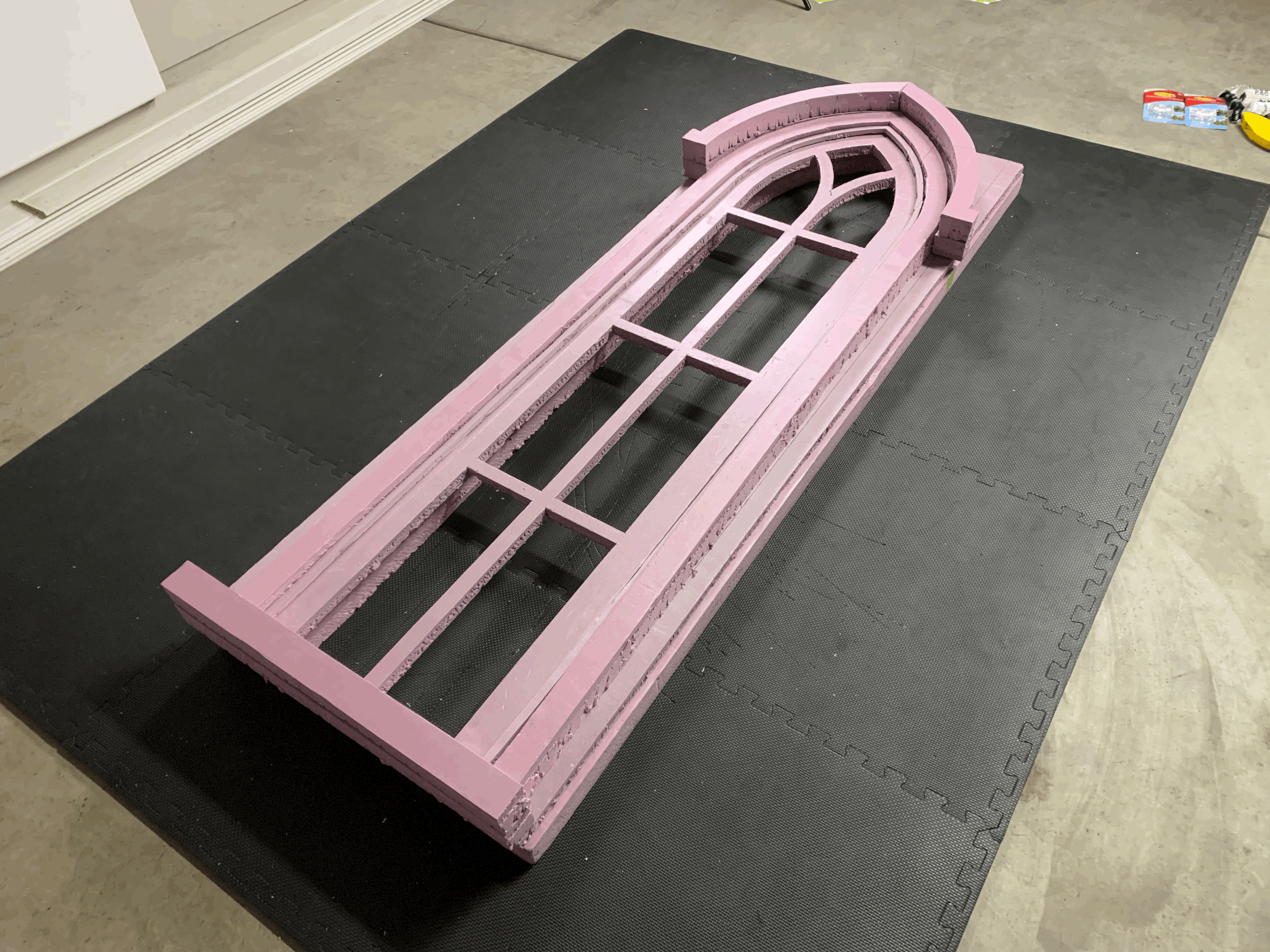

Plans and Templates: DIY 9-Pane LED Gothic Window
9-Pane LED-illuminated gothic window plans, material list with hyperlinks for online ordering, and full-scale templates for printing.
Use as an interior/exterior Halloween prop using insulation foam board or modify it for interior wall decor by using wood.
• Total assembled window size: 25.5"x73.3".
• Templates are on an over-size, 24"x72" page: scale parts up or down to your preferred window size.
• Plans are on Legal size page: Overview, Exploded View, Material List, Recommended Parts Arrangement per Foam Board Thickness for Material Efficiency.
• Download includes: PDF Plans and PDF Templates.
Tutorial video: https://youtu.be/fdWw2hFw5CY
Returns:
All sales are final. This order includes digital intellectual property—plans and proprietary information—from Seize The DIY that are delivered immediately upon purchase. As such, returns and refunds cannot be accommodated.
